[428617.156430] INFO: task oninit:4327 blocked for more than 120 seconds.
[428617.156431] Not tainted 4.18.0-425.10.1.el8_7.x86_64 #1
[428617.156433] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message.
[428617.156433] task:oninit state:D stack: 0 pid: 4327 ppid: 4300 flags:0x00004084
[428617.156436] Call Trace:
[428617.156437] __schedule+0x2d1/0x860
[428617.156439] ? blk_flush_plug_list+0xd7/0x100
[428617.156441] schedule+0x35/0xa0
[428617.156443] ext4_unwritten_wait+0x87/0xc0 [ext4]
[428617.156460] ? finish_wait+0x80/0x80
[428617.156462] ext4_file_write_iter+0x396/0x3e0 [ext4]
[428617.156478] aio_write+0xf6/0x1c0
[428617.156480] ? blk_mq_sched_insert_requests+0x6c/0xf0
[428617.156483] ? io_submit_one+0x7e/0x3c0
[428617.156484] ? kmem_cache_alloc+0x13f/0x280
[428617.156486] io_submit_one+0x131/0x3c0
[428617.156488] __x64_sys_io_submit+0xa2/0x180
[428617.156489] ? syscall_trace_enter+0x1ff/0x2d0
[428617.156492] do_syscall_64+0x5b/0x1b0
[428617.156494] entry_SYSCALL_64_after_hwframe+0x61/0xc6
[428617.156497] RIP: 0033:0x7fd1d50409bd
[428617.156499] Code: Unable to access opcode bytes at RIP 0x7fd1d5040993.
[428617.156500] RSP: 002b:00000000531c4da8 EFLAGS: 00000246 ORIG_RAX: 00000000000000d1
[428617.156501] RAX: ffffffffffffffda RBX: 00007fd1d698ab78 RCX: 00007fd1d50409bd
[428617.156502] RDX: 00000000531c4de8 RSI: 0000000000000001 RDI: 00007fd1c4593000
[428617.156503] RBP: 00007fd1c4593000 R08: 00000001358df800 R09: 000000005667b8d8
[428617.156504] R10: ffffffffffffffe0 R11: 0000000000000246 R12: 0000000000000001
[428617.156505] R13: 0000000000000000 R14: 00000000531c4de8 R15: 000000005667b850
[..]
[428617.158050] Kernel panic - not syncing: hung_task: blocked tasks
[428617.158052] CPU: 7 PID: 126 Comm: khungtaskd Kdump: loaded Not tainted 4.18.0-425.10.1.el8_7.x86_64 #1
[428617.158053] Hardware name: VMware, Inc. VMware7,1/440BX Desktop Reference Platform, BIOS VMW71.00V.18227214.B64.2106252220 06/25/2021
[428617.158054] Call Trace:
[428617.158055] dump_stack+0x41/0x60
[428617.158058] panic+0xe7/0x2ac
[428617.158062] watchdog+0x242/0x2f0
[428617.158065] ? hungtask_pm_notify+0x50/0x50
[428617.158068] kthread+0x10b/0x130
[428617.158070] ? set_kthread_struct+0x50/0x50
[428617.158073] ret_from_fork+0x1f/0x40
$ git show 3eaf9cc62f447
commit 3eaf9cc62f447a742b26fa601993e94406aa1ea1
Author: Matthew Bobrowski <mbobrowski@mbobrowski.org>
Date: Tue Nov 5 23:02:23 2019 +1100
ext4: update ext4_sync_file() to not use __generic_file_fsync()
When the filesystem is created without a journal, we eventually call
into __generic_file_fsync() in order to write out all the modified
in-core data to the permanent storage device. This function happens to
try and obtain an inode_lock() while synchronizing the files buffer
and it's associated metadata.
Generally, this is fine, however it becomes a problem when there is
higher level code that has already obtained an inode_lock() as this
leads to a recursive lock situation. This case is especially true when
porting across direct I/O to iomap infrastructure as we obtain an
inode_lock() early on in the I/O within ext4_dio_write_iter() and hold
it until the I/O has been completed. Consequently, to not run into
this specific issue, we move away from calling into
__generic_file_fsync() and perform the necessary synchronization tasks
within ext4_sync_file().
Signed-off-by: Matthew Bobrowski <mbobrowski@mbobrowski.org>
Reviewed-by: Ritesh Harjani <riteshh@linux.ibm.com>
Reviewed-by: Jan Kara <jack@suse.cz>
Link: https://lore.kernel.org/r/3495f35ef67f2021b567e28e6f59222e583689b8.1572949325.git.mbobrowski@mbobrowski.org
Signed-off-by: Theodore Ts'o <tytso@mit.edu>
diff --git a/fs/ext4/fsync.c b/fs/ext4/fsync.c
index 5508baa11bb6..e10206e7f4bb 100644
--- a/fs/ext4/fsync.c
+++ b/fs/ext4/fsync.c
@@ -80,6 +80,43 @@ static int ext4_sync_parent(struct inode *inode)
return ret;
}
+static int ext4_fsync_nojournal(struct inode *inode, bool datasync,
+ bool *needs_barrier)
+{
+ int ret, err;
+
+ ret = sync_mapping_buffers(inode->i_mapping);
+ if (!(inode->i_state & I_DIRTY_ALL))
+ return ret;
+ if (datasync && !(inode->i_state & I_DIRTY_DATASYNC))
+ return ret;
+
+ err = sync_inode_metadata(inode, 1);
+ if (!ret)
+ ret = err;
+
+ if (!ret)
+ ret = ext4_sync_parent(inode);
+ if (test_opt(inode->i_sb, BARRIER))
+ *needs_barrier = true;
+
+ return ret;
+}
+
+static int ext4_fsync_journal(struct inode *inode, bool datasync,
+ bool *needs_barrier)
+{
+ struct ext4_inode_info *ei = EXT4_I(inode);
+ journal_t *journal = EXT4_SB(inode->i_sb)->s_journal;
+ tid_t commit_tid = datasync ? ei->i_datasync_tid : ei->i_sync_tid;
+
+ if (journal->j_flags & JBD2_BARRIER &&
+ !jbd2_trans_will_send_data_barrier(journal, commit_tid))
+ *needs_barrier = true;
+
+ return jbd2_complete_transaction(journal, commit_tid);
+}
+
/*
* akpm: A new design for ext4_sync_file().
*
@@ -91,17 +128,14 @@ static int ext4_sync_parent(struct inode *inode)
* What we do is just kick off a commit and wait on it. This will snapshot the
* inode to disk.
*/
-
int ext4_sync_file(struct file *file, loff_t start, loff_t end, int datasync)
{
- struct inode *inode = file->f_mapping->host;
- struct ext4_inode_info *ei = EXT4_I(inode);
- journal_t *journal = EXT4_SB(inode->i_sb)->s_journal;
int ret = 0, err;
- tid_t commit_tid;
bool needs_barrier = false;
+ struct inode *inode = file->f_mapping->host;
+ struct ext4_sb_info *sbi = EXT4_SB(inode->i_sb);
- if (unlikely(ext4_forced_shutdown(EXT4_SB(inode->i_sb))))
+ if (unlikely(ext4_forced_shutdown(sbi)))
return -EIO;
J_ASSERT(ext4_journal_current_handle() == NULL);
@@ -111,23 +145,15 @@ int ext4_sync_file(struct file *file, loff_t start, loff_t end, int datasync)
if (sb_rdonly(inode->i_sb)) {
/* Make sure that we read updated s_mount_flags value */
smp_rmb();
- if (EXT4_SB(inode->i_sb)->s_mount_flags & EXT4_MF_FS_ABORTED)
+ if (sbi->s_mount_flags & EXT4_MF_FS_ABORTED)
ret = -EROFS;
goto out;
}
- if (!journal) {
- ret = __generic_file_fsync(file, start, end, datasync);
- if (!ret)
- ret = ext4_sync_parent(inode);
- if (test_opt(inode->i_sb, BARRIER))
- goto issue_flush;
- goto out;
- }
-
ret = file_write_and_wait_range(file, start, end);
if (ret)
return ret;
+
/*
* data=writeback,ordered:
* The caller's filemap_fdatawrite()/wait will sync the data.
@@ -142,18 +168,14 @@ int ext4_sync_file(struct file *file, loff_t start, loff_t end, int datasync)
* (they were dirtied by commit). But that's OK - the blocks are
* safe in-journal, which is all fsync() needs to ensure.
*/
- if (ext4_should_journal_data(inode)) {
+ if (!sbi->s_journal)
+ ret = ext4_fsync_nojournal(inode, datasync, &needs_barrier);
+ else if (ext4_should_journal_data(inode))
ret = ext4_force_commit(inode->i_sb);
- goto out;
- }
+ else
+ ret = ext4_fsync_journal(inode, datasync, &needs_barrier);
- commit_tid = datasync ? ei->i_datasync_tid : ei->i_sync_tid;
- if (journal->j_flags & JBD2_BARRIER &&
- !jbd2_trans_will_send_data_barrier(journal, commit_tid))
- needs_barrier = true;
- ret = jbd2_complete_transaction(journal, commit_tid);
if (needs_barrier) {
- issue_flush:
err = blkdev_issue_flush(inode->i_sb->s_bdev, GFP_KERNEL, NULL);
if (!ret)
ret = err;
</tytso@mit.edu></jack@suse.cz></riteshh@linux.ibm.com></mbobrowski@mbobrowski.org></mbobrowski@mbobrowski.org>crash> sys | grep -e RELEASE -e PANIC
RELEASE: 4.18.0-425.10.1.el8_7.x86_64
PANIC: "Kernel panic - not syncing: hung_task: blocked tasks"
crash> sys -i | grep DMI_SYS_VENDOR: -A 1
DMI_SYS_VENDOR: VMware, Inc.
DMI_PRODUCT_NAME: VMware7,1
crash> log
[..]
[428617.156430] INFO: task oninit:4327 blocked for more than 120 seconds.
[428617.156431] Not tainted 4.18.0-425.10.1.el8_7.x86_64 #1
[428617.156433] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message.
[428617.156433] task:oninit state:D stack: 0 pid: 4327 ppid: 4300 flags:0x00004084
[428617.156436] Call Trace:
[428617.156437] __schedule+0x2d1/0x860
[428617.156439] ? blk_flush_plug_list+0xd7/0x100
[428617.156441] schedule+0x35/0xa0
[428617.156443] ext4_unwritten_wait+0x87/0xc0 [ext4]
[428617.156460] ? finish_wait+0x80/0x80
[428617.156462] ext4_file_write_iter+0x396/0x3e0 [ext4]
[428617.156478] aio_write+0xf6/0x1c0
[428617.156480] ? blk_mq_sched_insert_requests+0x6c/0xf0
[428617.156483] ? io_submit_one+0x7e/0x3c0
[428617.156484] ? kmem_cache_alloc+0x13f/0x280
[428617.156486] io_submit_one+0x131/0x3c0
[428617.156488] __x64_sys_io_submit+0xa2/0x180
[428617.156489] ? syscall_trace_enter+0x1ff/0x2d0
[428617.156492] do_syscall_64+0x5b/0x1b0
[428617.156494] entry_SYSCALL_64_after_hwframe+0x61/0xc6
[428617.156497] RIP: 0033:0x7fd1d50409bd
[428617.156499] Code: Unable to access opcode bytes at RIP 0x7fd1d5040993.
[428617.156500] RSP: 002b:00000000531c4da8 EFLAGS: 00000246 ORIG_RAX: 00000000000000d1
[428617.156501] RAX: ffffffffffffffda RBX: 00007fd1d698ab78 RCX: 00007fd1d50409bd
[428617.156502] RDX: 00000000531c4de8 RSI: 0000000000000001 RDI: 00007fd1c4593000
[428617.156503] RBP: 00007fd1c4593000 R08: 00000001358df800 R09: 000000005667b8d8
[428617.156504] R10: ffffffffffffffe0 R11: 0000000000000246 R12: 0000000000000001
[428617.156505] R13: 0000000000000000 R14: 00000000531c4de8 R15: 000000005667b850
[..]
[428617.158050] Kernel panic - not syncing: hung_task: blocked tasks
[428617.158052] CPU: 7 PID: 126 Comm: khungtaskd Kdump: loaded Not tainted 4.18.0-425.10.1.el8_7.x86_64 #1
[428617.158053] Hardware name: VMware, Inc. VMware7,1/440BX Desktop Reference Platform, BIOS VMW71.00V.18227214.B64.2106252220 06/25/2021
[428617.158054] Call Trace:
[428617.158055] dump_stack+0x41/0x60
[428617.158058] panic+0xe7/0x2ac
[428617.158062] watchdog+0x242/0x2f0
[428617.158065] ? hungtask_pm_notify+0x50/0x50
[428617.158068] kthread+0x10b/0x130
[428617.158070] ? set_kthread_struct+0x50/0x50
[428617.158073] ret_from_fork+0x1f/0x40
[..]
crash> set 4327
PID: 4327
COMMAND: "oninit"
TASK: ffff9fc84c518000 [THREAD_INFO: ffff9fc84c518000]
CPU: 9
STATE: TASK_UNINTERRUPTIBLE
crash> px ((struct file *)((struct task_struct *)0xffff9fc84c518000)->mm->exe_file)->f_path.dentry
$4 = (struct dentry *) 0xffff9fc8fc257e00
crash> files -d 0xffff9fc8fc257e00
DENTRY INODE SUPERBLK TYPE PATH
ffff9fc8fc257e00 ffff9fc8fc178120 ffff9fc85014f000 REG /users4/ifxdb_14.10.FC8_WE/bin/oninit
crash> ps -m 4327
[0 00:02:35.486] [UN] PID: 4327 TASK: ffff9fc84c518000 CPU: 9 COMMAND: "oninit"
crash> bt
PID: 4327 TASK: ffff9fc84c518000 CPU: 9 COMMAND: "oninit"
#0 [ffffb2fd13a77bf0] __schedule at ffffffffbb9eb121
#1 [ffffb2fd13a77c80] schedule at ffffffffbb9eb6e5
#2 [ffffb2fd13a77c90] ext4_unwritten_wait at ffffffffc08b7317 [ext4]
#3 [ffffb2fd13a77cd8] ext4_file_write_iter at ffffffffc08b7b46 [ext4]
#4 [ffffb2fd13a77d38] aio_write at ffffffffbb3b9e16
#5 [ffffb2fd13a77e40] io_submit_one at ffffffffbb3ba1a1
#6 [ffffb2fd13a77eb8] __x64_sys_io_submit at ffffffffbb3ba7b2
#7 [ffffb2fd13a77f38] do_syscall_64 at ffffffffbb0043ab
#8 [ffffb2fd13a77f50] entry_SYSCALL_64_after_hwframe at ffffffffbba000a9
RIP: 00007fd1d50409bd RSP: 00000000531c4da8 RFLAGS: 00000246
RAX: ffffffffffffffda RBX: 00007fd1d698ab78 RCX: 00007fd1d50409bd
RDX: 00000000531c4de8 RSI: 0000000000000001 RDI: 00007fd1c4593000
RBP: 00007fd1c4593000 R8: 00000001358df800 R9: 000000005667b8d8
R10: ffffffffffffffe0 R11: 0000000000000246 R12: 0000000000000001
R13: 0000000000000000 R14: 00000000531c4de8 R15: 000000005667b850
ORIG_RAX: 00000000000000d1 CS: 0033 SS: 002b
crash> dis -rl ffffffffc08b7317 | tail -n 5
/usr/src/debug/kernel-4.18.0-425.10.1.el8_7/linux-4.18.0-425.10.1.el8_7.x86_64/fs/ext4/file.c: 111
0xffffffffc08b730b <ext4_unwritten_wait+123>: call 0xffffffffbb1447b0 <init_wait_entry>
0xffffffffc08b7310 <ext4_unwritten_wait+128>: jmp 0xffffffffc08b7317 <ext4_unwritten_wait+135>
0xffffffffc08b7312 <ext4_unwritten_wait+130>: call 0xffffffffbb9eb6b0 <schedule>
0xffffffffc08b7317 <ext4_unwritten_wait+135>: mov $0x2,%edx
Kernel Source: fs/ext4/file.c
*****************************
218 static ssize_t
219 ext4_file_write_iter(struct kiocb *iocb, struct iov_iter *from)
220 {
221 struct inode *inode = file_inode(iocb->ki_filp);
222 int o_direct = iocb->ki_flags & IOCB_DIRECT;
223 int unaligned_aio = 0;
224 int overwrite = 0;
225 ssize_t ret;
...
273 /*
274 * Unaligned direct AIO must be the only IO in flight. Otherwise
275 * overlapping aligned IO after unaligned might result in data
276 * corruption.
277 */
278 if (ret == -EIOCBQUEUED && unaligned_aio)
279 ext4_unwritten_wait(inode);
...
Kernel Source: fs/ext4/file.c
*****************************
107 static void ext4_unwritten_wait(struct inode *inode)
108 {
109 wait_queue_head_t *wq = ext4_ioend_wq(inode);
110
111 wait_event(*wq, (atomic_read(&EXT4_I(inode)->i_unwritten) == 0));
crash> px ext4_unwritten_wait
ext4_unwritten_wait = $2 =
{void (struct inode *)} 0xffffffffc08b7290 <ext4_unwritten_wait>
crash> dis -r ffffffffc08b7b46 | tail -n 3
0xffffffffc08b7b3e <ext4_file_write_iter+910>: mov %rbp,%rdi
0xffffffffc08b7b41 <ext4_file_write_iter+913>: call 0xffffffffc08b7290 <ext4_unwritten_wait>
0xffffffffc08b7b46 <ext4_file_write_iter+918>: mov %r14,%rdi
crash> bt -f | grep ext4_file_write_iter
#3 [ffffb2fd13a77cd8] ext4_file_write_iter at ffffffffc08b7b46 [ext4]
crash> px (0xffffb2fd13a77cd8-0x8)
$5 = 0xffffb2fd13a77cd0
crash> rd 0xffffb2fd13a77cd0
ffffb2fd13a77cd0: ffff9fca42897788 .w.B....
o struct inode * == 0xffff9fca42897788
crash> struct ext4_inode_info.vfs_inode -ox
struct ext4_inode_info {
[0xe8] struct inode vfs_inode;
}
crash> px (0xffff9fca42897788-0xe8)
$6 = 0xffff9fca428976a0
o struct ext4_inode_info * == 0xffff9fca428976a0
crash> struct ext4_inode_info.i_unwritten 0xffff9fca428976a0
i_unwritten = {
counter = 1
},
crash> struct inode.i_dentry 0xffff9fca42897788
i_dentry = {
first = 0xffff9fc85a8cc8f0
},
crash> px (0xffff9fc85a8cc8f0-0xb0)
$7 = 0xffff9fc85a8cc840
o struct dentry * == 0xffff9fc85a8cc840
crash> files -d 0xffff9fc85a8cc840
DENTRY INODE SUPERBLK TYPE PATH
ffff9fc85a8cc840 ffff9fca42897788 ffff9fc84bf55800 REG /informix/data/data3dbs_1
crash> mount | grep -e NAME -e ffff9fc84bf55800
MOUNT SUPERBLK TYPE DEVNAME DIRNAME
ffff9fc87136d080 ffff9fc84bf55800 ext4 /dev/mapper/rhel-informix /informix <<< - - -
crash> px ((struct ext4_sb_info *)((struct super_block *)0xffff9fc84bf55800)->s_fs_info)->s_journal
$8 = (struct journal_s *) 0x0
crash> struct inode.i_sb 0xffff9fca42897788
i_sb = 0xffff9fc84bf55800,
crash> struct super_block.s_bdev 0xffff9fc84bf55800
s_bdev = 0xffff9fc880c32d00,
crash> struct block_device.bd_disk 0xffff9fc880c32d00
bd_disk = 0xffff9fc8706a9000,
crash> struct gendisk.disk_name 0xffff9fc8706a9000
disk_name = "dm-8\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000\000",
crash> dmshow --lvs | grep -e NAME -e dm-8
LV DM-X DEV LV NAME VG NAME OPEN COUNT LV SIZE (MiB) PV NAME
dm-8 informix rhel 1 512000.00 sda3
crash> dev -d | grep -e NAME -e dm-8
MAJOR GENDISK NAME REQUEST_QUEUE TOTAL ASYNC SYNC
253 ffff9fc8706a9000 dm-8 ffff9fc848c21fb0 0 0 0
crash> set 4585
PID: 4585
COMMAND: "dio/dm-8"
TASK: ffff9fca0d9ea800 [THREAD_INFO: ffff9fca0d9ea800]
CPU: 4
STATE: TASK_UNINTERRUPTIBLE
crash> ps -m 4585
[0 00:02:35.436] [UN] PID: 4585 TASK: ffff9fca0d9ea800 CPU: 4 COMMAND: "dio/dm-8"
crash> bt
PID: 4585 TASK: ffff9fca0d9ea800 CPU: 4 COMMAND: "dio/dm-8"
#0 [ffffb2fd13bd7c98] __schedule at ffffffffbb9eb121
#1 [ffffb2fd13bd7d28] schedule at ffffffffbb9eb6e5
#2 [ffffb2fd13bd7d38] rwsem_down_write_slowpath at ffffffffbb15503c
#3 [ffffb2fd13bd7dc0] __generic_file_fsync at ffffffffbb389f92
#4 [ffffb2fd13bd7df0] ext4_sync_file at ffffffffc08b9310 [ext4]
#5 [ffffb2fd13bd7e30] dio_complete at ffffffffbb3a5353
#6 [ffffb2fd13bd7e68] process_one_work at ffffffffbb110767
#7 [ffffb2fd13bd7ea8] rescuer_thread at ffffffffbb110b1b
#8 [ffffb2fd13bd7f10] kthread at ffffffffbb117f8b
#9 [ffffb2fd13bd7f50] ret_from_fork at ffffffffbba0024f
crash> dis -rl ffffffffbb389f92 | tail -n 6
/usr/src/debug/kernel-4.18.0-425.10.1.el8_7/linux-4.18.0-425.10.1.el8_7.x86_64/./include/linux/fs.h: 787
0xffffffffbb389f83 <__generic_file_fsync+51>: lea 0xa8(%rbp),%r14
0xffffffffbb389f8a <__generic_file_fsync+58>: mov %r14,%rdi
0xffffffffbb389f8d <__generic_file_fsync+61>: call 0xffffffffbb9edd50 <down_write>
/usr/src/debug/kernel-4.18.0-425.10.1.el8_7/linux-4.18.0-425.10.1.el8_7.x86_64/fs/libfs.c: 1004
0xffffffffbb389f92 <__generic_file_fsync+66>: mov 0x30(%rbp),%rdi
Kernel Source: fs/libfs.c
*************************
992 int __generic_file_fsync(struct file *file, loff_t start, loff_t end,
993 int datasync)
994 {
995 struct inode *inode = file->f_mapping->host;
996 int err;
997 int ret;
998
999 err = file_write_and_wait_range(file, start, end);
1000 if (err)
1001 return err;
1002
1003 inode_lock(inode);
Kernel Source: include/linux/fs.h
*********************************
785 static inline void inode_lock(struct inode *inode)
786 {
787 down_write(&inode->i_rwsem);
crash> dis -r ffffffffc08b9310 | tail -n 3
0xffffffffc08b9308 <ext4_sync_file+456>: mov %rbx,%rdi
0xffffffffc08b930b <ext4_sync_file+459>: call 0xffffffffbb389f50 <__generic_file_fsync>
0xffffffffc08b9310 <ext4_sync_file+464>: mov %eax,%r13d
crash> dis -r ffffffffbb389f92 | head -n 7
0xffffffffbb389f50 <__generic_file_fsync>: nopl 0x0(%rax,%rax,1) [FTRACE NOP]
0xffffffffbb389f55 <__generic_file_fsync+5>: push %r14
0xffffffffbb389f57 <__generic_file_fsync+7>: push %r13
0xffffffffbb389f59 <__generic_file_fsync+9>: push %r12
0xffffffffbb389f5b <__generic_file_fsync+11>: mov %ecx,%r12d
0xffffffffbb389f5e <__generic_file_fsync+14>: push %rbp
0xffffffffbb389f5f <__generic_file_fsync+15>: push %rbx
crash> bt -f | grep __generic_file_fsync -A 4
#3 [ffffb2fd13bd7dc0] __generic_file_fsync at ffffffffbb389f92
ffffb2fd13bd7dc8: ffff9fc90b9dde00 ffff9fca42897788
ffffb2fd13bd7dd8: 0000000000000001 0000000000000800
ffffb2fd13bd7de8: 000000008b6517ff ffffffffc08b9310
#4 [ffffb2fd13bd7df0] ext4_sync_file at ffffffffc08b9310 [ext4]
o struct file * == 0xffff9fc90b9dde00
crash> px ((struct file *)0xffff9fc90b9dde00)->f_mapping.host
$9 = (struct inode *) 0xffff9fca42897788
o struct inode * == 0xffff9fca42897788
crash> struct inode.i_dentry 0xffff9fca42897788
i_dentry = {
first = 0xffff9fc85a8cc8f0
},
crash> px (0xffff9fc85a8cc8f0-0xb0)
$10 = 0xffff9fc85a8cc840
o struct dentry * == 0xffff9fc85a8cc840
crash> files -d 0xffff9fc85a8cc840
DENTRY INODE SUPERBLK TYPE PATH
ffff9fc85a8cc840 ffff9fca42897788 ffff9fc84bf55800 REG /informix/data/data3dbs_1
crash> struct inode.i_rwsem 0xffff9fca42897788 -ox
struct inode {
[ffff9fca42897830] struct rw_semaphore i_rwsem;
}
o struct rw_semaphore * == 0xffff9fca42897830
crash> struct rw_semaphore.wait_list 0xffff9fca42897830 -ox
struct rw_semaphore {
[ffff9fca42897838] struct list_head wait_list;
}
crash> list -H 0xffff9fca42897838
ffffb2fd066abd90
ffffb2fd065dfd90
ffffb2fd194efd90
ffffb2fd17a47d90
ffffb2fd1b2dfd90
ffffb2fd13bd7d60
crash> list -H 0xffff9fca42897838 -s rwsem_waiter.task | grep task | tr -d , | awk '{print $3}' > rw_task
crash> ps -m < rw_task
[0 00:02:35.467] [UN] PID: 3613198 TASK: ffff9fdee0a50000 CPU: 4 COMMAND: "kworker/4:5"
[0 00:02:35.467] [UN] PID: 3613196 TASK: ffff9fe291838000 CPU: 4 COMMAND: "kworker/4:3"
[0 00:02:35.467] [UN] PID: 3606261 TASK: ffff9fd99a8aa800 CPU: 4 COMMAND: "kworker/4:7"
[0 00:02:35.467] [UN] PID: 3609395 TASK: ffff9fe68de85000 CPU: 4 COMMAND: "kworker/4:1"
[0 00:02:35.467] [UN] PID: 3612070 TASK: ffff9fd2ae145000 CPU: 4 COMMAND: "kworker/4:0"
[0 00:02:35.436] [UN] PID: 4585 TASK: ffff9fca0d9ea800 CPU: 4 COMMAND: "dio/dm-8"
crash> list -H 0xffff9fca42897838 -o rwsem_waiter.list -s rwsem_waiter.type | grep type | awk '{print $3}' | sort | uniq -c
6 RWSEM_WAITING_FOR_WRITE,
crash> px ((struct rw_semaphore *)0xffff9fca42897830)->owner
$11 = {
counter = 0xffff9fc84c518000
}
o struct task_struct * == 0xffff9fc84c518000
crash> task_struct.pid 0xffff9fc84c518000
pid = 4327,
crash> ps 4327
PID PPID CPU TASK ST %MEM VSZ RSS COMM
4327 4300 9 ffff9fc84c518000 UN 0.0 29594148 25704 oninit
crash> set 4327
PID: 4327
COMMAND: "oninit"
TASK: ffff9fc84c518000 [THREAD_INFO: ffff9fc84c518000]
CPU: 9
STATE: TASK_UNINTERRUPTIBLE
crash> bt
PID: 4327 TASK: ffff9fc84c518000 CPU: 9 COMMAND: "oninit"
#0 [ffffb2fd13a77bf0] __schedule at ffffffffbb9eb121
#1 [ffffb2fd13a77c80] schedule at ffffffffbb9eb6e5
#2 [ffffb2fd13a77c90] ext4_unwritten_wait at ffffffffc08b7317 [ext4]
#3 [ffffb2fd13a77cd8] ext4_file_write_iter at ffffffffc08b7b46 [ext4]
#4 [ffffb2fd13a77d38] aio_write at ffffffffbb3b9e16
#5 [ffffb2fd13a77e40] io_submit_one at ffffffffbb3ba1a1
#6 [ffffb2fd13a77eb8] __x64_sys_io_submit at ffffffffbb3ba7b2
#7 [ffffb2fd13a77f38] do_syscall_64 at ffffffffbb0043ab
#8 [ffffb2fd13a77f50] entry_SYSCALL_64_after_hwframe at ffffffffbba000a9
RIP: 00007fd1d50409bd RSP: 00000000531c4da8 RFLAGS: 00000246
RAX: ffffffffffffffda RBX: 00007fd1d698ab78 RCX: 00007fd1d50409bd
RDX: 00000000531c4de8 RSI: 0000000000000001 RDI: 00007fd1c4593000
RBP: 00007fd1c4593000 R8: 00000001358df800 R9: 000000005667b8d8
R10: ffffffffffffffe0 R11: 0000000000000246 R12: 0000000000000001
R13: 0000000000000000 R14: 00000000531c4de8 R15: 000000005667b850
ORIG_RAX: 00000000000000d1 CS: 0033 SS: 002b
https://access.redhat.com/solutions/7006119
| IT47044: CHANGE RECOMMENDATION FROM 'RAW DEVICE' TO 'COOKED FILE' (2) | 2024.10.30 |
|---|---|
| IT43456: KAIO NOT SUPPORTED WITH SECTOR_SIZES GREATER THAN 1KB (0) | 2024.07.25 |
| IT11530: LISTENER THREAD MAY NOT BE ABLE TO BIND TO PORT WHEN USING IPV6 ADDRESSES (0) | 2023.10.12 |
| How do I know if my Buffers are Overallocated? (0) | 2023.01.11 |
| How to obtain the actual date and time in a stored procedure (0) | 2022.07.05 |
KAIO not supported with sector_sizes greater than 1kB
The listener thread may receive an OS error when trying to bind
the port with an IPv6 address. This results in an AF similar to:
Assert Warning: Unable to bind to the port (18105) on the host
() for the server (server1).
Stack for thread: 11 soctcplst
(oninit) afstack
(oninit) afhandler
(oninit) afwarn_interface
(oninit) listen_af_alarm
(oninit) lisnsocket
(oninit) tlListen
(oninit) slSQIlisten
(oninit) pfListen
(oninit) cmListen
(oninit) alListen
(oninit) ASF_Call
(oninit) sql_listener
This may occur when using a specific IPv6 address other than the
loopback address ::1.
This problem may occur on releases of Linux where the option
"myhostname" is permitted for the hosts entry in
/etc/nsswitch.conf. The presence of this entry avoids the need
to enter the host's specific IP address into /etc/hosts and will
result in an IPv6 address being used by the listener thread if
IPv6 has been configured for at least one network interface. Red
Hat 7 is one such OS version where this option is available.
The workaround is to allow the bind operation to use any of the
available IPv6 addresses on the server by prefixing the hostname
or address in column 3 of the sqlhosts file with an asterix "*".
Alternatively if IPv6 is not required it may be disabled by
setting the environment variable IFX_DISABLE_IPV6 or creating
the empty file $INFORMIXDIR/etc/IFX_DISABLE_IPV6.
****************************************************************
* USERS AFFECTED: *
* informix user with IPv6 enabled *
****************************************************************
* PROBLEM DESCRIPTION: *
* See Error Description *
****************************************************************
* RECOMMENDATION: *
* Update to IBM Informix Server 12.10.xC6 *
****************************************************************
Problem Fixed In IBM Informix Server 12.10.xC6
| IBM Informix Dynamic Server process blocked due to deadlock on ext4 filesystem mounted without a journal. (0) | 2024.07.27 |
|---|---|
| IT43456: KAIO NOT SUPPORTED WITH SECTOR_SIZES GREATER THAN 1KB (0) | 2024.07.25 |
| How do I know if my Buffers are Overallocated? (0) | 2023.01.11 |
| How to obtain the actual date and time in a stored procedure (0) | 2022.07.05 |
| 테이블을 특정 시점으로 복구하는 기능 (0) | 2022.06.27 |
Your read cache rate (onstat -p) rises durning server use to ninety-nine percent. You suspect that you have overallocated buffers to the extent that you are wasting memory. How can you determine how much of your buffer cache memory is used?
Count the number of buffers in use at regular intervals and compare with the total allocated. You can use the following two methods to count the number of buffer pages in use at a given point in time:
https://www.ibm.com/support/pages/how-do-i-know-if-my-buffers-are-overallocated
How do I know if my Buffers are Overallocated?
How do I know if my Buffers are Overallocated?
www.ibm.com
| IT43456: KAIO NOT SUPPORTED WITH SECTOR_SIZES GREATER THAN 1KB (0) | 2024.07.25 |
|---|---|
| IT11530: LISTENER THREAD MAY NOT BE ABLE TO BIND TO PORT WHEN USING IPV6 ADDRESSES (0) | 2023.10.12 |
| How to obtain the actual date and time in a stored procedure (0) | 2022.07.05 |
| 테이블을 특정 시점으로 복구하는 기능 (0) | 2022.06.27 |
| DBeaver에서 인포믹스 한글 깨짐 해결 (0) | 2022.05.02 |
This article describes a problem which occurs when CURRENT does not recalculate the actual date and time when called more than once in a stored procedure.
PROBLEM
Repeated calls to the CURRENT function within a stored procedure always returns the same value.
This problem is typically seen when the stored procedure uses a cursor that loops through large quantities of data, such that by the time the final row is reached, the actual time has moved on and CURRENT no longer hold the true system datetime.
CAUSE
If using CURRENT in a stored procedure, the datetime value is set to the current system datetime at the time the procedure is called. CURRENT is not updated while the stored procedure is running.
SOLUTION
The system table sysmaster:sysshmvals.sh_curtime stores the exact system datetime. Run the following query within your stored procedure to return the actual time and store it into the local variable current_time.
select DBINFO('utc_to_datetime', sh_curtime) into current_time
from sysmaster:sysshmvals;
The following example demonstrates the different results returned when comparing the use of the CURRENT function with that of the sysshmvals query shown above.
Example:
create database currdemo;
create table dates (text char(20),
time datetime year to second);
create procedure test()
define i int;
define current_time datetime year to second;
insert into dates values ("current 1st run", CURRENT);
select DBINFO('utc_to_datetime', sh_curtime) into current_time
from sysmaster:sysshmvals;
insert into dates values ("realtime 1st run", current_time);
system "sleep 5" ;
insert into dates values ("current 2nd run", CURRENT);
select DBINFO('utc_to_datetime', sh_curtime) into current_time
from sysmaster:sysshmvals;
insert into dates values ("realtime 2nd run", current_time);
end procedure;
execute procedure test();
select * from dates order by text;
The output looks as follows:
text time
current 1st run 2006-10-31 17:02:11
current 2nd run 2006-10-31 17:02:11
realtime 1st run 2006-10-31 17:02:11
realtime 2nd run 2006-10-31 17:02:16
출처 : https://www.ibm.com/support/pages/how-obtain-actual-date-and-time-stored-procedure
| IT11530: LISTENER THREAD MAY NOT BE ABLE TO BIND TO PORT WHEN USING IPV6 ADDRESSES (0) | 2023.10.12 |
|---|---|
| How do I know if my Buffers are Overallocated? (0) | 2023.01.11 |
| 테이블을 특정 시점으로 복구하는 기능 (0) | 2022.06.27 |
| DBeaver에서 인포믹스 한글 깨짐 해결 (0) | 2022.05.02 |
| 주차 (Week number) 계산하기 (0) | 2021.10.20 |
안녕하세요. 이번 글에서는 인포믹스 테이블 복구 기능에 대해서 소개드리고자 합니다.
데이터베이스의 물리적인 오류나 사용자의 실수로 데이터가 손실되었을 때 테이블 복구 기능을 사용합니다.
오라클의 FLASHBACK과 유사한 기능으로 볼수도 있습니다. FLASHBACK은 언두영역의 과거 데이터를 복구하는 반면, 인포믹스의 테이블 복구기능은 백업본을 스캔하여 특정 테이블의 데이터를 추출하여 복구합니다.
Informix의 테이블 복구기능의 장점은 아래와 같습니다.
1. ontape 또는 onbar로 백업받은 이미지가 존재할 경우, 백업된 시점의 데이터를 복구할 수 있다.
2. 백업 전체를 리스토어 할 필요없이 특정 테이블만 추출하여 복구가 가능하다. 따라서 복구시 테이블 크기만큼의 여유공간만 필요하므로 효율적이다.
3. 기존 테이블과 다른 이름의 테이블, 또는 CSV파일 형식으로 지정하여 복구할 수 있다.
4. onbar의 경우 log restore가 가능하다. 즉, 특정 시점을 지정하여 복구 가능하다.
인포믹스 테이블 복구에는 archecker라는 유틸리티를 사용합니다.
복구를 수행하려면 대상 테이블의 CREATE TABLE 문장이 포함된 스키마 커맨드 파일이 필요합니다.

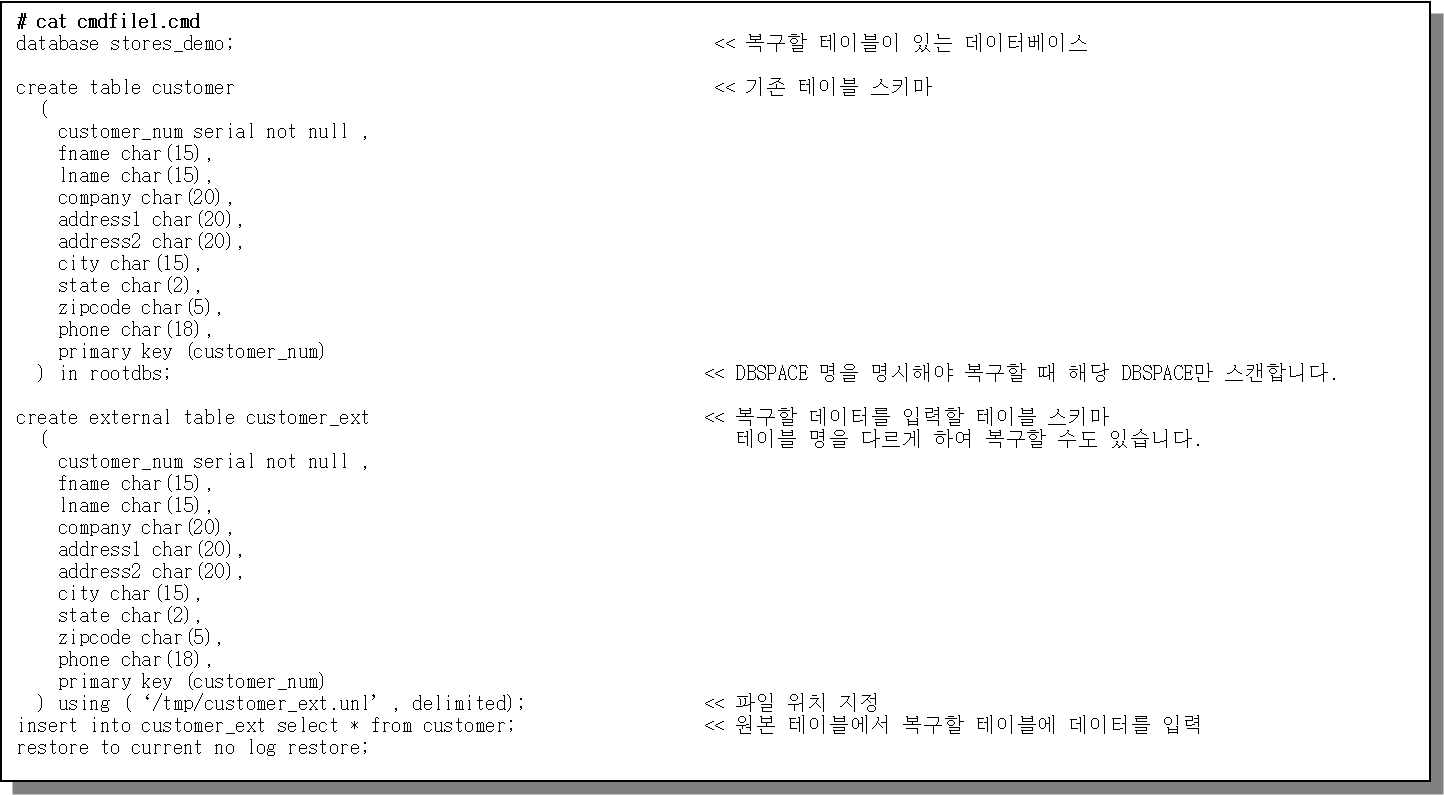

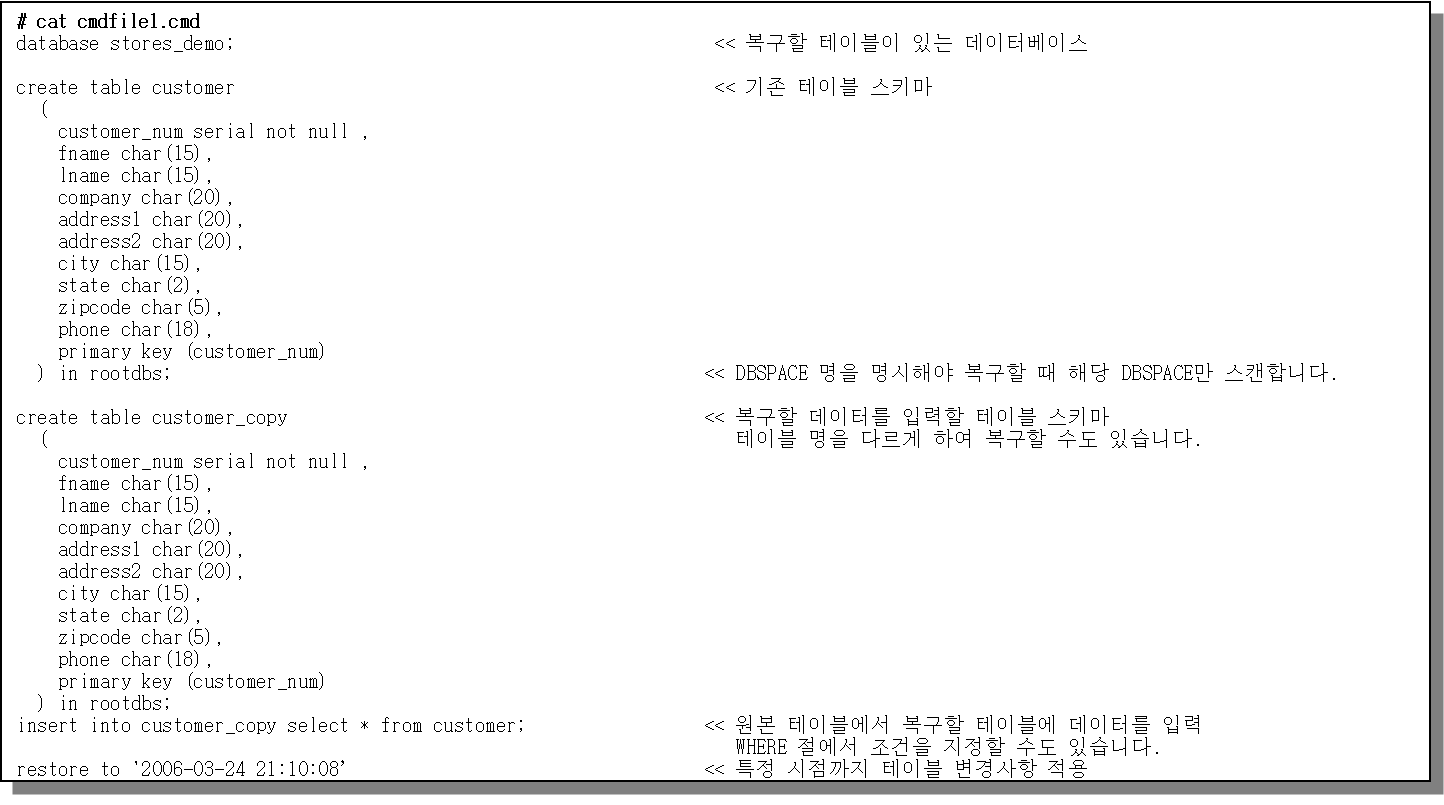

아래는 스키마 커맨드 파일의 예시입니다. 텍스트 형식의 파일입니다.
스키마 커맨드 파일이 준비되면 archecker를 실행하여 복구를 수행할 수 있습니다.
기존 데이터에 영향없이 과거 데이터를 별도 공간에 복구하는 방법이기 때문에 매우 유용한 기능입니다.
대신 스키마 정보가 꼭 필요하기 때문에 수시로 백업이 되어야겠죠.
이 기능은 별도 라이센스가 필요하지 않으므로 인포믹스 무료 버전인 Innovator-C 에디션에서도 사용가능합니다.
| How do I know if my Buffers are Overallocated? (0) | 2023.01.11 |
|---|---|
| How to obtain the actual date and time in a stored procedure (0) | 2022.07.05 |
| DBeaver에서 인포믹스 한글 깨짐 해결 (0) | 2022.05.02 |
| 주차 (Week number) 계산하기 (0) | 2021.10.20 |
| Round robin 테이블 기능 개선 (0) | 2021.10.20 |
안녕하세요. DBeaver와 같은 JDBC 연결 프로그램에서 인포믹스의 한글 데이터가 깨져보이는 경우가 있습니다.
이런 현상을 해결하기 위한 방법을 정리해보려고 합니다.
우선 대부분의 경우는 인포믹스 데이터베이스 로케일이 영문일 가능성이 높습니다.
아래와 같이 데이터베이스의 로케일을 확인하실 수 있습니다. 영문 로케일은 일반적으로 en_US.819 로 표시됩니다.
데이터베이스에 한글 데이터 INSERT 문장을 실행하면 오류메시지(Code-set conversion function failed due to an illegal sequence or invalid value.)가 발생합니다.
이번에는 터미널에서 한글 데이터를 입력해놓고 조회를 해봅니다. 조회는 오류가 발생하지 않지만 아래처럼 알아볼 수 없는 깨진 글자가 나옵니다.
근본적인 해결방법은 데이터베이스 생성시 한글 코드를 지원하는 데이터베이스에 마이그레이션 하는 것이 좋지만, 실제 사용중인 데이터베이스를 변경하기는 어려우므로, JDBC Driver에서 지원되는 기능을 사용하여 이 현상을 우회할 수 있습니다.
DBeaver Connection 설정에서 JDBC Driver 사용자 속성 NEWCODESET을 추가합니다.
해당 속성을 추가해서 JDK 로케일(ksc5601)과 인포믹스 JDBC 드라이버의 내부 테이블(8859-1,819)과 매핑시킬 수 있습니다.

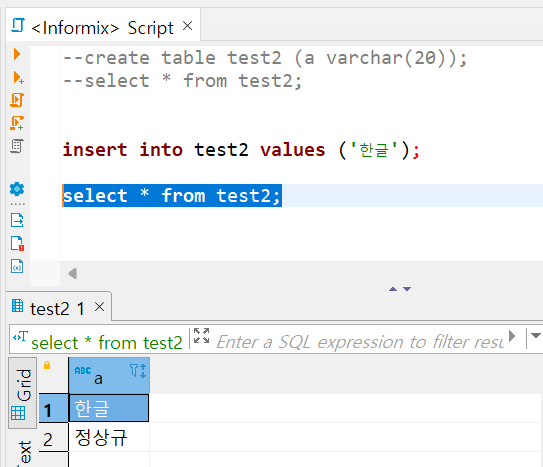

속성을 추가한 후 새로 데이터베이스에 연결하면 한글 데이터 입력과 조회 모두 잘 실행됩니다.
NEWCODESET 속성은 인포믹스 서버 10버전 부터 소개되고 있는데, 이에 대응하는 JDBC Driver는 3버전 이상입니다.

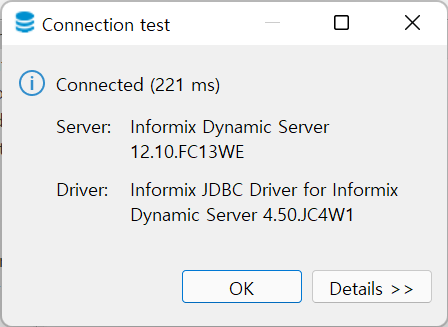

DBeaver에서 JDBC Driver 3.00.JC1 버전으로 연결 테스트를 해보니 오류가 나네요. 최소 3.5버전 이상으로 테스트 해보시길 바랍니다.
| How to obtain the actual date and time in a stored procedure (0) | 2022.07.05 |
|---|---|
| 테이블을 특정 시점으로 복구하는 기능 (0) | 2022.06.27 |
| 주차 (Week number) 계산하기 (0) | 2021.10.20 |
| Round robin 테이블 기능 개선 (0) | 2021.10.20 |
| QUERY TIMEOUT 설정 (0) | 2021.10.20 |
안녕하세요. Informix에는 연도별 주차를 계산하는 기능이 없어서 찾아보다가 다른 코드를 보고 따라서 만들어 보았습니다. 주차에 대한 개념이 없다보니 커뮤니티와 블로그, 위키 자료들을 참고했는데요. 일반적으로 쓰이는 형태가 ISO 8601 표준이라고 합니다.
ISO 8601에 따르면 1주차에 대한 정의는 아래와 같습니다.
아래와 같이 다양한 DBMS에서 함수를 사용하여 특정일자에 대한 주차를 구할 수 있습니다만.. Informix는 자체 기능이 제공되지 않아서 아쉽군요.
| DBMS | 제공함수 | 사용예시 |
| Oracle | TO_CHAR | TO_CHAR(DATE '2021-08-25' , 'IW') |
| Db2 | TO_CHAR | TO_CHAR(DATE '2021-08-25' , 'IW') |
| MySQL | WEEK | WEEK('2021-08-25', 3); |
| MariaDB | WEEK | WEEK('2021-08-25', 3); |
| SQL Server | DATEPART | DATEPART(ISOWK,'2021-08-25') |
| PostgreSQL | DATE_PART / EXTRACT | DATE_PART('WEEK', '2021-08-25'::DATE) EXTRACT('WEEK' FROM '2021-08-25'::DATE) |
| Sybase | DATEPART | DATEPART(CWK, '8/25/2021') |
Informix에는 기본 내장된 함수가 없기 때문에 계산 방식에 대해서 조사를 했습니다.
위에서 상술된 조건을 만족해야하고, Informix에서 datetime 을 일자로 변환하여 계산하는 등의 몇가지 시행착오가 있었습니다.
create function weeknum ( dt varchar(10) )
returning int;
define wknum int;
select trunc(((to_date(dt, '%Y-%m-%d') - yearstart)::interval day(3) to day::varchar(12)::integer) / 7) + 1
into wknum
from
(
select case when nextyr <= to_date(dt, '%Y-%m-%d') then nextyr
when curryr <= to_date(dt, '%Y-%m-%d') then curryr
else prioryr
end yearstart
from
(
select
mdy(1,1,1753) + trunc(((jan4 - 1 units year - mdy(1,1,1900) + 53690 units day)::varchar(12)::integer) / 7) * 7 units day prioryr,
mdy(1,1,1753) + trunc(((jan4 - mdy(1,1,1900) + 53690 units day)::varchar(12)::integer) / 7) * 7 units day curryr,
mdy(1,1,1753) + trunc(((jan4 + 1 units year - mdy(1,1,1900) + 53690 units day)::varchar(12)::integer) / 7) * 7 units day nextyr
from (
select mdy(1,1,1900) + (extend (to_date(dt, '%Y-%m-%d'), year to year) - mdy (1,1,1900))::varchar(12)::integer units year + 3 units day jan4 from dual
)
)
);
return wknum;
end function;
아래와 같은 방식으로 Informix에서 특정 일자에 대한 주차를 구할 수 있습니다. 위 함수를 수정하면 쿼리형태로도 사용 가능할 것 같습니다.
> select weeknum ('2021-08-25') from sysmaster:sysdual;
(expression)
34
https://en.wikipedia.org/wiki/ISO_8601
https://en.wikipedia.org/wiki/ISO_week_date
https://www.toolbox.com/tech/oracle/question/how-the-week-number-is-being-derived-121815/
https://www.sqlteam.com/forums/topic.asp?TOPIC_ID=60515
http://www.whitemiceconsulting.com/informixintervaltips201609
https://www.sqlservercentral.com/articles/a-simple-formula-to-calculate-the-iso-week-number
https://4js.com/online_documentation/fjs-fgl-3.00.05-manual-html/c_fgl_odiagmsv_005.html
| 테이블을 특정 시점으로 복구하는 기능 (0) | 2022.06.27 |
|---|---|
| DBeaver에서 인포믹스 한글 깨짐 해결 (0) | 2022.05.02 |
| Round robin 테이블 기능 개선 (0) | 2021.10.20 |
| QUERY TIMEOUT 설정 (0) | 2021.10.20 |
| 테이블과 인덱스를 자동으로 배치하기 (AUTOLOCATE) (0) | 2021.07.21 |
14.10.xC6 버전부터 Round robin 방식으로 분할된 테이블의 개선된 기능을 소개드립니다.
Round robin 분할 방식로 구성된 테이블은 데이터가 지정된 DBspace를 순환하며 입력됩니다.
-- Round robin 분할 테이블에 데이터 입력
> create table test (a int) fragment by round robin in dbs1,dbs2;
Table created.
> insert into test select level from sysmaster:sysdual connect by level <= 5000;
5000 row(s) inserted.
-- 분할된 파티션 별 데이터 건수 확인
$ oncheck -pt demo:test | egrep 'partition|rows'
Table fragment partition dbs1 in DBspace dbs1
Number of rows 2500
Table fragment partition dbs1 in DBspace dbs2
Number of rows 2500위와 같은 상태에서 새로운 DBspace를 round robin 스키마에 추가하면, 기존 데이터는 이동하지 않고 새로 입력되는 데이터는 기존처럼 DBspace를 순환하며 입력됩니다.
-- Round robin 분할 테이블에 새로운 DBspace 추가
> alter fragment on table test add dbs3;
Alter fragment completed.
> insert into test select level from sysmaster:sysdual connect by level <= 3;
3 row(s) inserted.
-- 분할된 파티션 별 데이터 건수 확인
$ oncheck -pt demo:test | egrep 'partition|rows'
Table fragment partition dbs1 in DBspace dbs1
Number of rows 2501
Table fragment partition dbs2 in DBspace dbs2
Number of rows 2501
Table fragment partition dbs3 in DBspace dbs3
Number of rows 114.10.xC6 버전부터는 Round robin 방식으로 구성된 테이블에 데이터가 입력될 경우, 가장 데이터 건수가 적은 파티션에 우선적으로 입력됩니다.
-- Round robin 분할 테이블에 데이터 입력
> create table test (a int) fragment by round robin in datadbs1,datadbs2;
Table created.
> insert into test select level from sysmaster:sysdual connect by level <= 5000;
5000 row(s) inserted.
-- Round robin 분할 테이블에 새로운 DBspace 추가
> alter fragment on table test add datadbs3;
Alter fragment completed.
> insert into test select level from sysmaster:sysdual connect by level <= 3;
3 row(s) inserted.
-- 분할된 파티션 별 데이터 건수 확인
$ oncheck -pt demo:test | egrep 'partition|rows'
Table fragment partition datadbs1 in DBspace datadbs1
Number of rows 2500
Table fragment partition datadbs2 in DBspace datadbs2
Number of rows 2500
Table fragment partition datadbs3 in DBspace datadbs3
Number of rows 3
파티션 별로 데이터량을 균등하게 유지하는 측면에서 좋은 기능인 것 같습니다. UPDATE 문장으로는 데이터가 이동하지 않더군요. 참고하시길 바랍니다.
| DBeaver에서 인포믹스 한글 깨짐 해결 (0) | 2022.05.02 |
|---|---|
| 주차 (Week number) 계산하기 (0) | 2021.10.20 |
| QUERY TIMEOUT 설정 (0) | 2021.10.20 |
| 테이블과 인덱스를 자동으로 배치하기 (AUTOLOCATE) (0) | 2021.07.21 |
| Prevent and prepare for assertion failures (0) | 2021.06.13 |
